Automatic gear sorting machine

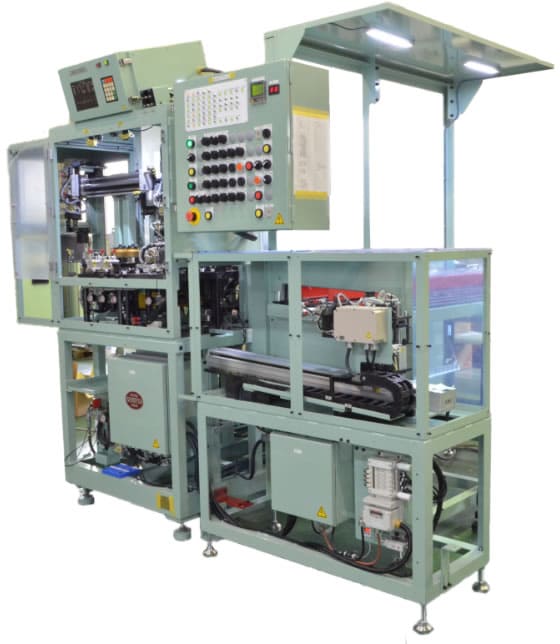

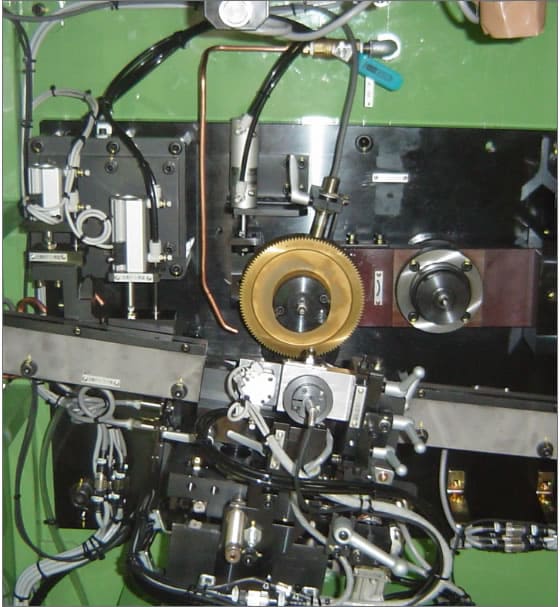

AGY automatic gear sorting machine
・Workpiece setting, measurement, and discharge by transfer loader
・Cycle time: Approx. 12 seconds per piece
・Capable of measuring helix angle deviation.
-
- Measured gear
- Midium gear with bore and ring gear
-
- Carrier loading method
- Conveyor system
-
- Mounting method
- Loader system
-
- Measuring items
- Nick
Runout
Size (tooth thickness)
Helix angle deviation, etc.
-
- Optional equipment
- End-face runout measurement device
Inner diameter measurement device
Sorting device
AGM automatic gear sorting machine
・Supports shafted gears.
・Measures up to 5-speed multi-stage gears simultaneously using dual-center reference.
-
- Measured gear
- Gear with shaft
-
- Carrier loading method
- Conveyor system
-
- Mounting method
- Lifter system
-
- Measuring items
- Nick
Runout
Size (tooth thickness), etc.
-
- Optional equipment
- End-face runout measurement device
Inner diameter measurement device
Sorting device

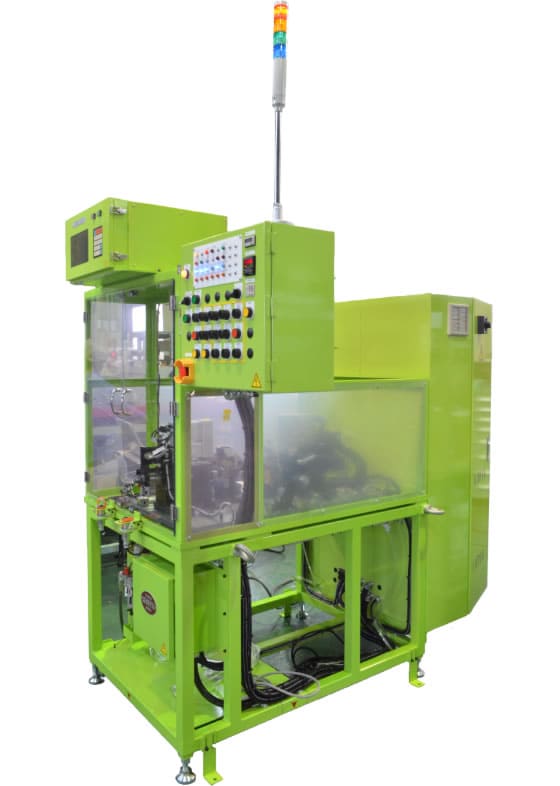

AGW automatic gear sorting machine
・High-speed measurement with a cycle time of approx. 6.5 seconds per piece
・Supports up to 4 lanes.
・Can be installed in compact spaces.
-
- Measured gear
- Small gear with bore
-
- Carrier loading method
- Chute system
-
- Mounting method
- Loader system
-
- Measuring items
- Nick
Runout
Size (tooth thickness), etc.
-
- Optional equipment
- End-face runout measurement device
Inner diameter measurement device
Sorting device

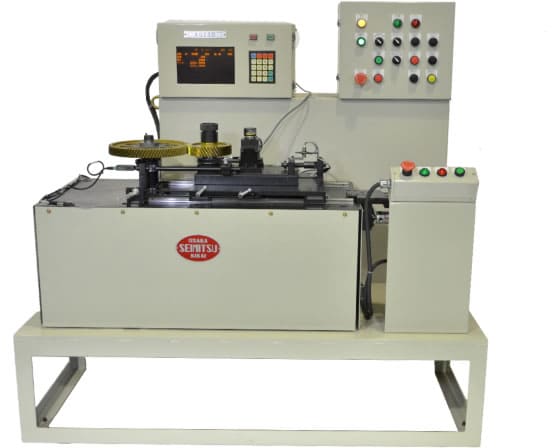

AG-230 gear sorting machine
・Manually-loaded gear sorting machine
・Designed to accommodate various gear sizes with a adjustable positioning sensors.
-
- Module
- 1.0 mm ~
-
- Center distance
- 70 ~ 230 mm
-
- Measuring items
- Nick
Runout
Size (tooth thickness)
