Products

Tooth profile, helix, and pitch measuring machine

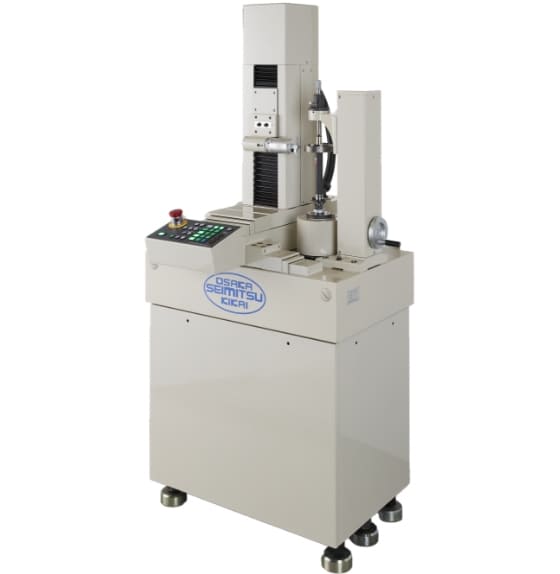

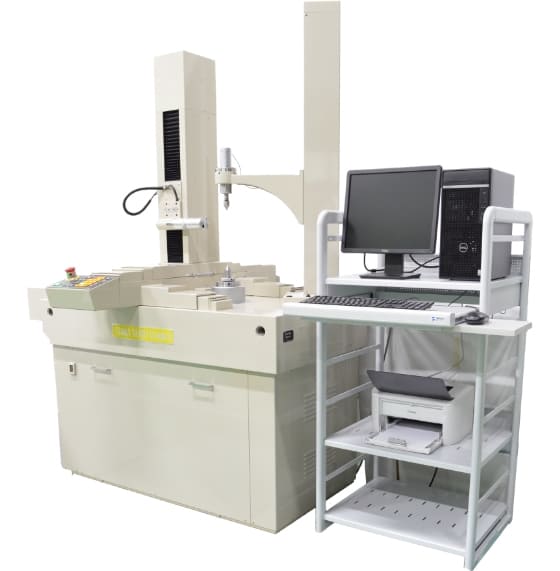

CLP Series
DDS Series
Rack measuring machine

CLP Series

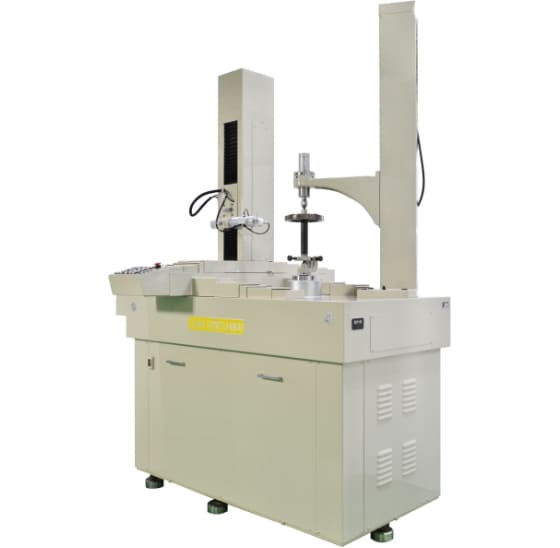

  • ・Full automatic gear measureing machine designed for high-precision measurement of gears used under heavy loads, such as those in automotive and construction machinery transmissions.

  • ・Standard model supporting spur gears, helical gears, and gear cutting tool measurements.

Download catalog

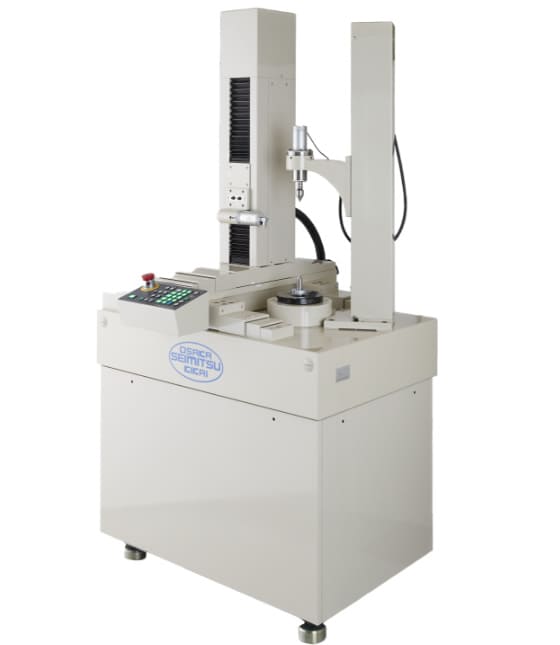

CLP-35SF

  • Module
    0.5 ~ 12 mm(Optional specification 0.1 ~)
  • Maximum outer diameter
    350 mm
  • Maximum face width
    400 mm
  • Measurable gear shaft length
    30 ~ 600 mm(Optional specification ~ 800 mm)
  • Maximum gear weight
    300 kg

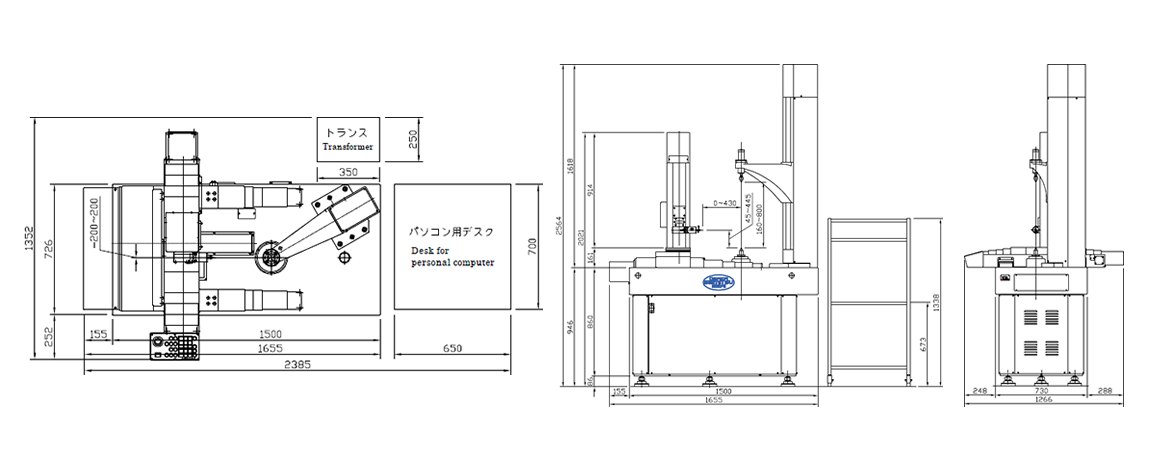

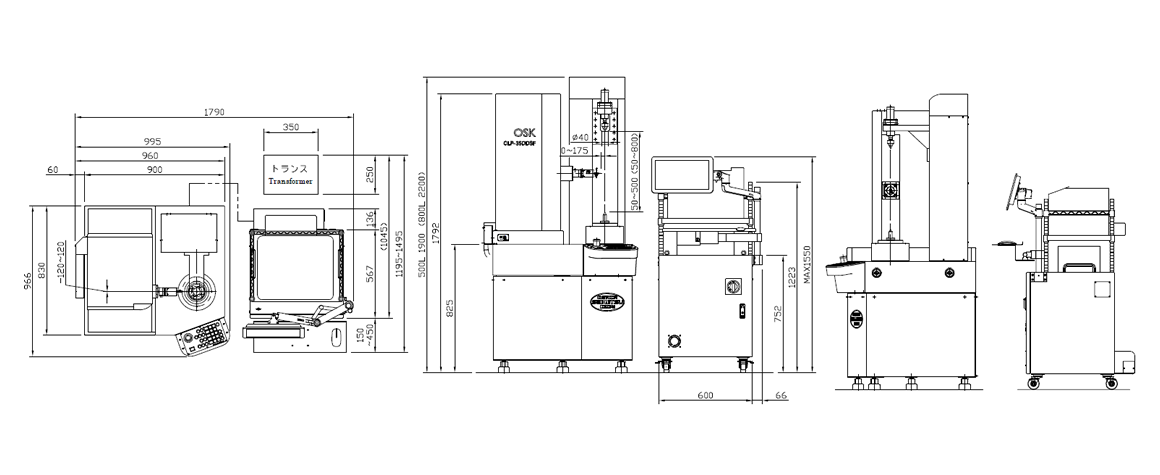

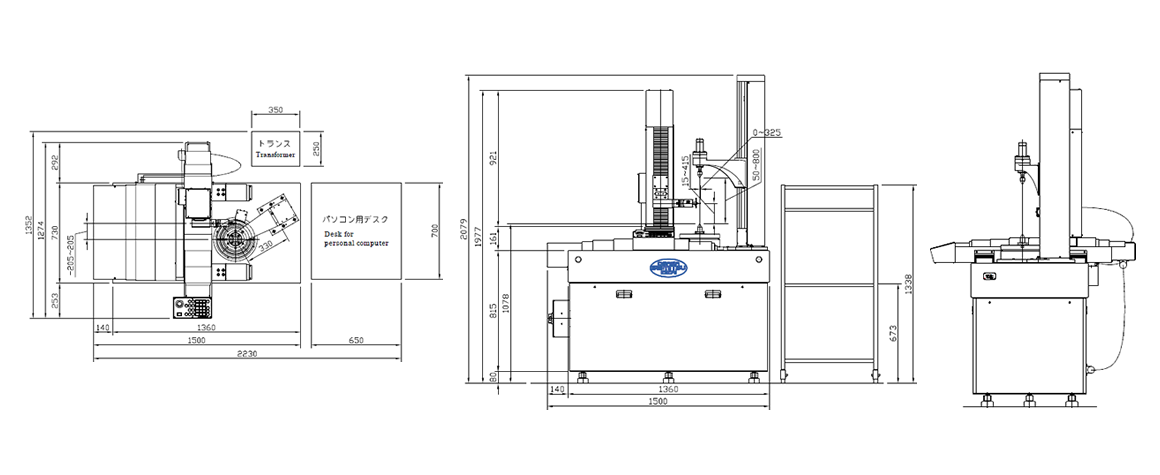

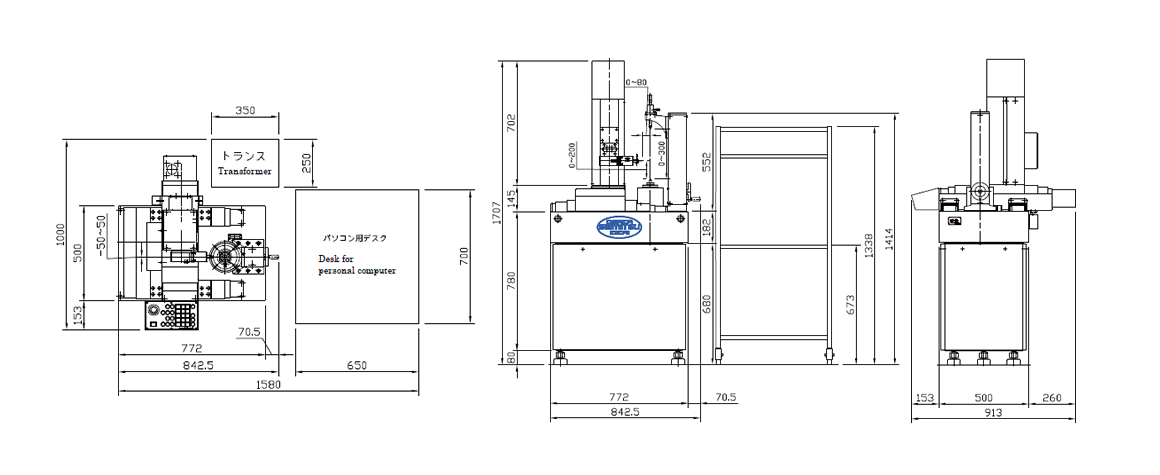

Outline and layout

CLP-15SF

  • Module
    0.2 ~ 5 mm(Optional specification 0.1 ~)
  • Maximum outer diameter
    150 mm
  • Maximum face width
    200 mm
  • Measurable gear shaft length
    0~300mm
  • Maximum gear weight
    50 kg

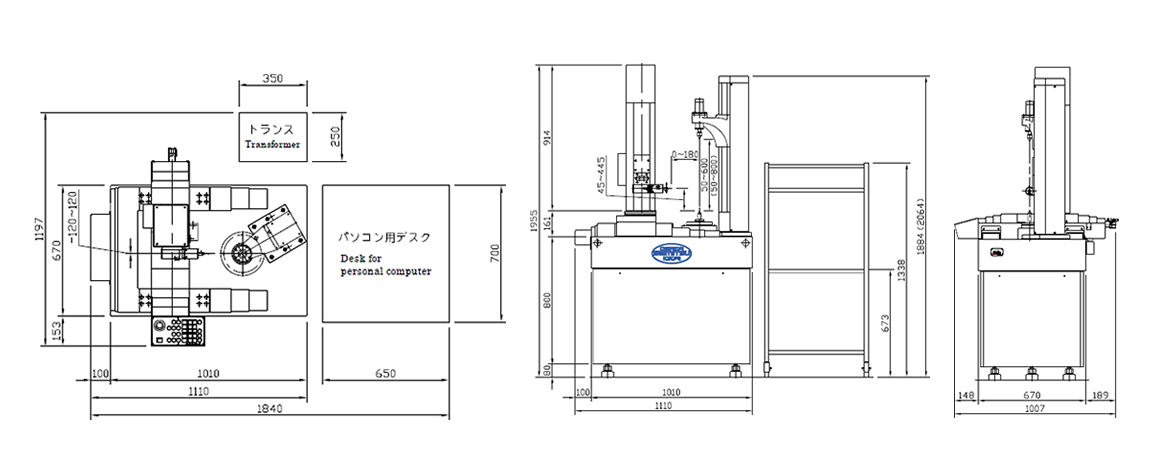

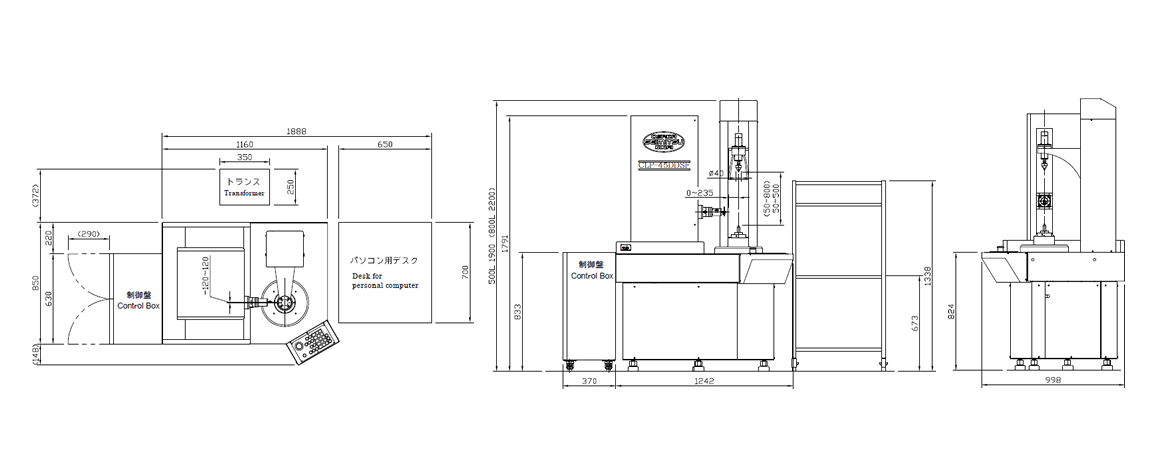

Outline and layout

CLP-65SF

  • Module
    0.5 ~ 20 mm
  • Maximum outer diameter
    650 mm
  • Maximum face width
    400 mm
  • Measurable gear shaft length
    50 ~ 800 mm(Optional specification ~ 1,000 mm)
  • Maximum gear weight
    350 kg

Outline and layout

CLP-85F

  • Module
    0.5 ~ 20 mm
  • Maximum outer diameter
    850 mm
  • Maximum face width
    400 mm
  • Measurable gear shaft length
    50 ~ 800 mm(Optional specification ~ 1,000 mm)
  • Maximum gear weight
    200 kg

Outline and layout

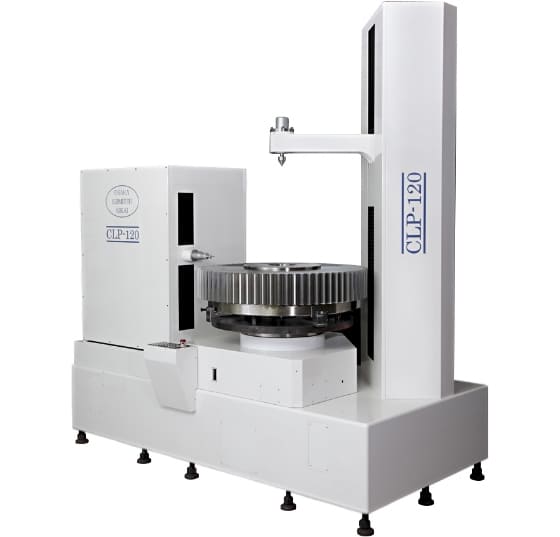

CLP-120F

  • Module
    1 ~ 25 mm
  • Maximum outer diameter
    1,250 mm
  • Maximum face width
    600 mm
  • Measurable gear shaft length
    200 ~ 1,200 mm(Optional specification ~ 1,500 mm)
  • Maximum gear weight
    3,000 kg

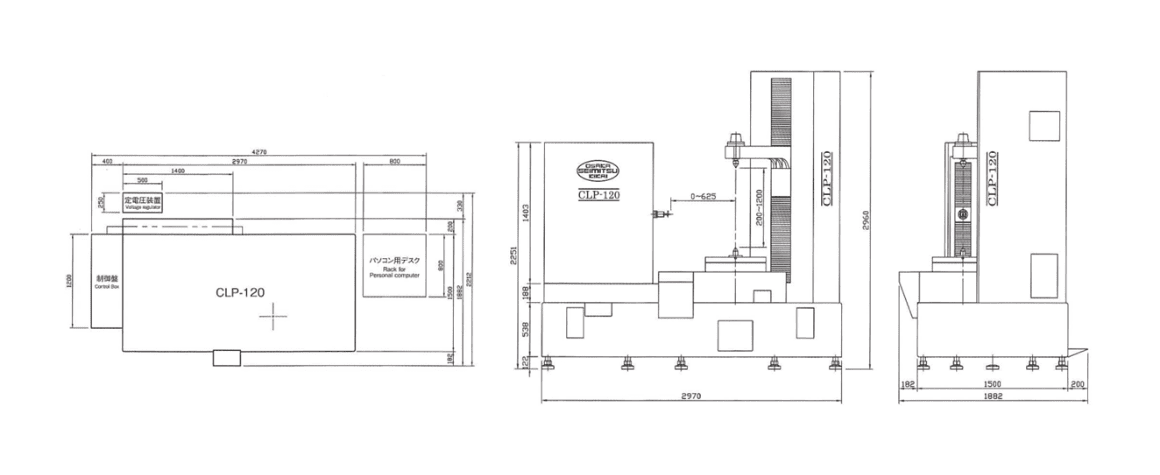

Outline and layout

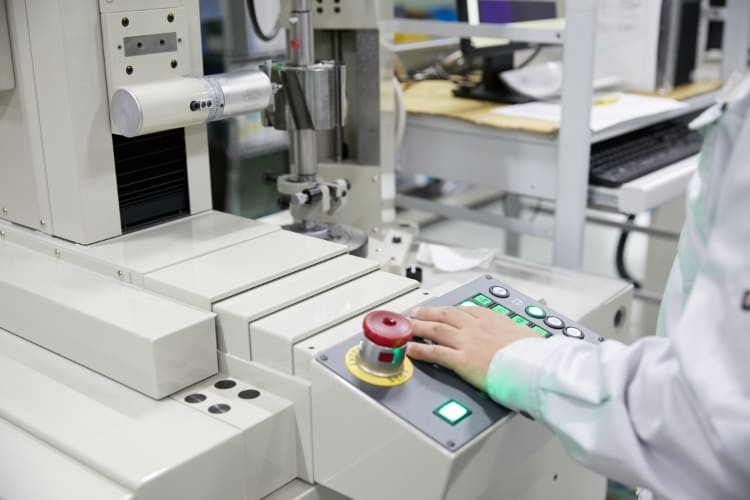

Simple measurement

STEP1

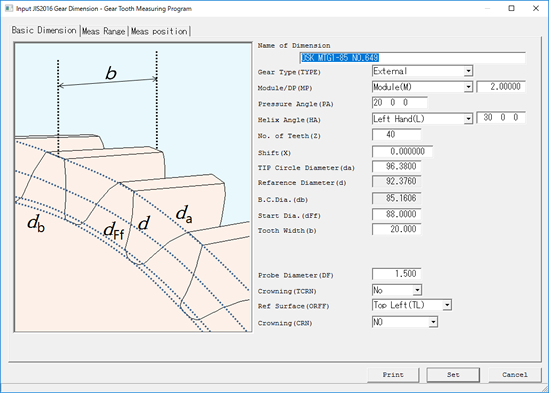

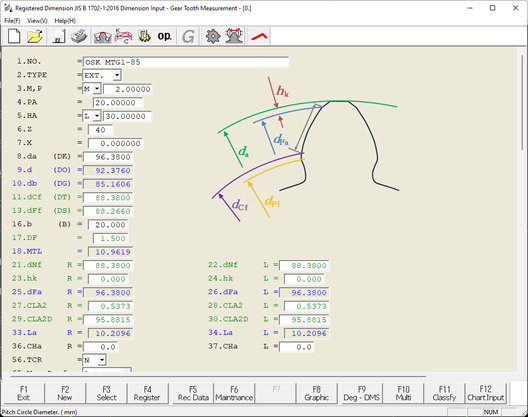

Gear specifications registration

STEP2

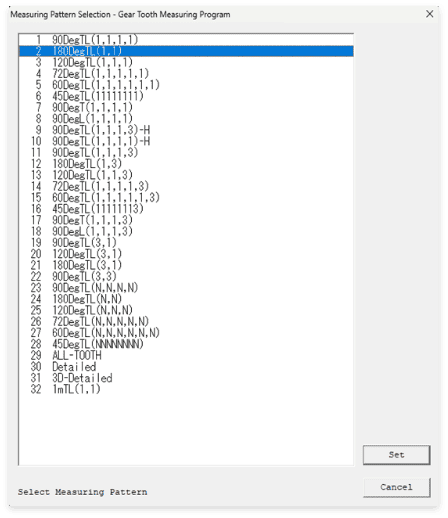

Measurement pattern settings

STEP3
Start measurement

STEP4
Various measurement results

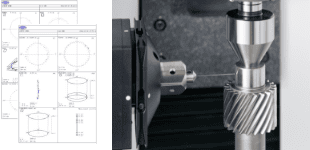

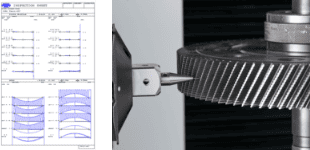

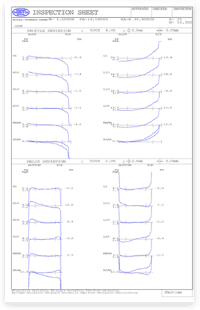

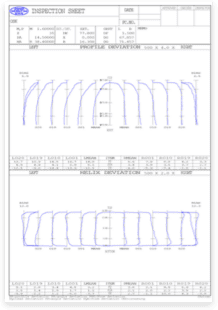

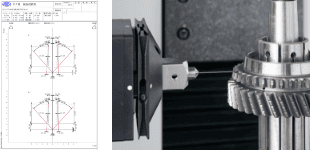

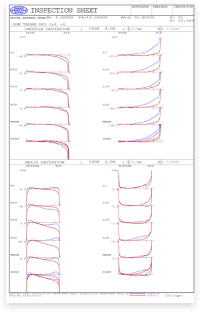

    • Tooth profile and helix measurement

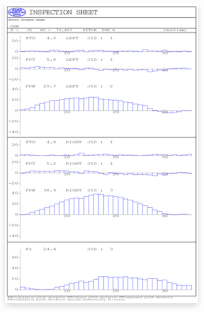

    • Pitch measurement
    • Superimpose output

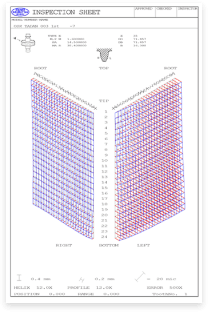

    • 3D display of tooth flank

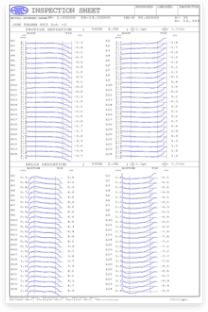

    • All tooth measurement

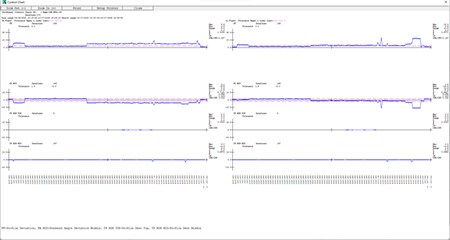

    • Control chart software

Various measurement examples

Various gears
  • Small module gear
  • Plastic gear
  • Worm
  • Worm wheel
  • Internal gear
  • Rack gear
  • Strain wave gear
  • Gear tooth surface roughness measurement
Tools

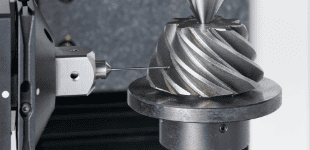

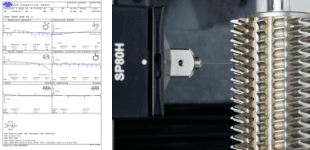

  • Hob
  • Shaving cutter
  • Pinion cutter

DDS Series

  • ・Resistant to environmental changes to ensure more stable measurement.

  • ・High-speed operation achieved with servo motor

  • ・With optional 3D probe, supports bevel gears, hypoid gears, geometrical deviation measurement, and expanded multifunctionality.

Download catalog

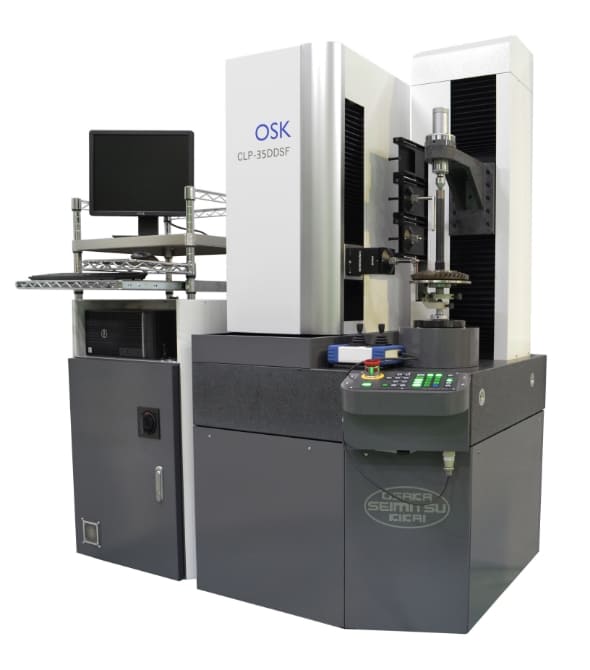

CLP-35DDSF

  • Module
    0.5 ~ 12 mm(Optional specification 0.1 ~)
  • Maximum outer diameter
    350 mm
  • Maximum face width
    400 mm
  • Measurable gear shaft length
    50 ~ 500 mm(Optional specification ~ 800 mm)
  • Maximum gear weight
    300 kg
  • Operating air pressure and consumption
    (3D recommended option)
    0.3 ~ 0.8 MPa65L/min

Outline and layout

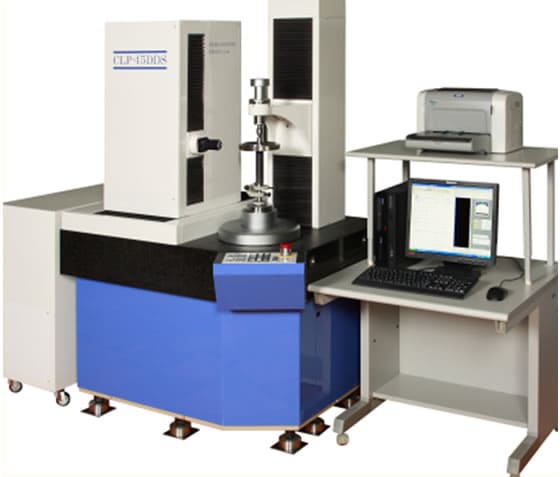

CLP-45DDSF

  • Module
    0.5 ~ 12 mm(Optional specification 0.1 ~)
  • Maximum outer diameter
    450 mm
  • Maximum face width
    400 mm
  • Measurable gear shaft length
    50 ~ 500 mm(Optional specification ~ 800 mm)
  • Maximum gear weight
    300 kg
  • Operating air pressure and consumption
    (3D recommended option)
    0.3 ~ 0.8 MPa65L/min

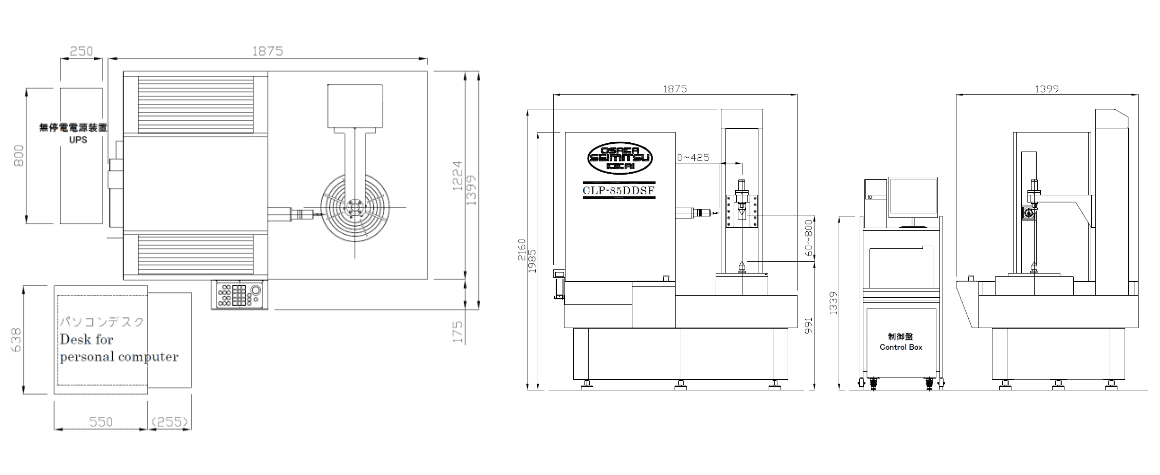

Outline and layout

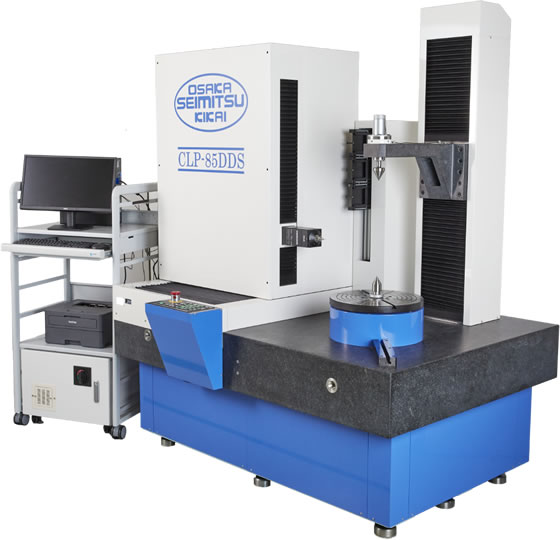

CLP-85DDSF

  • Module
    1.0 ~ 25 mm
  • Maximum outer diameter
    850 mm
  • Maximum face width
    600 mm
  • Measurable gear shaft length
    60 ~ 800 mm(Optional specification ~ 1,200 mm)
  • Maximum gear weight
    500 kg
  • Operating air pressure and consumption
    (3D recommended option)
    0.3 ~ 0.8 MPa
    65L/min

Outline and layout

Various measurement examples

Various gears
  • Small module gear
  • Plastic gear
  • Worm
  • Worm wheel
  • Internal gear
  • Rack gear
  • Strain wave gear
  • Master gear
Tools
  • Hob
  • Shaving cutter
  • Pinion cutter
Special measurement

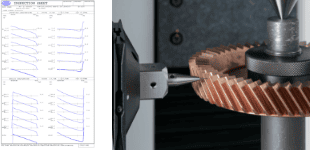

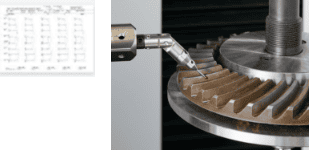

  • Hypoid gear
  • Pinion gear
  • Geometrical deviation measurement
  • Dog tooth measurement
  • Root profile measurement

Rack measuring machine

Download catalog

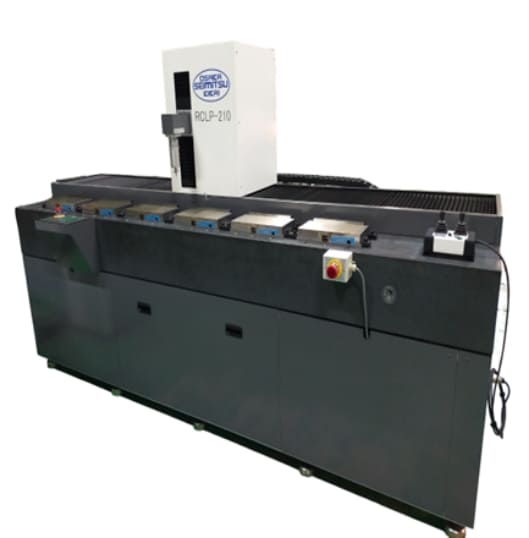

RCLP-210

  • ・RCLP-210 enables tooth profile, helix, and pitch measurement of large rack gears, which exceeded the size capacity of the previous CLP-35/65.

  • ・By using a direct drive mechanism and granite, the machine stabilizes measuring operations and accuracy to enable high-precision measurement.

  • ・It simultaneously measures pitch on both tooth flanks to reduce overall measurement time.

  • Measured parameters
    Tooth profile, helix and pitch (single, adjacent and cumulative) for spur and helical rack gear
  • Module
    0.5 ~ 10 mm
  • Maximum number of teeth
    ~ 999
  • Maximum gear height
    150mm
  • Maximum face width
    150mm
  • Maximum gear length
    2,100mm
  • Helix angle
    ±65°
  • Maximum gear weight
    120kg

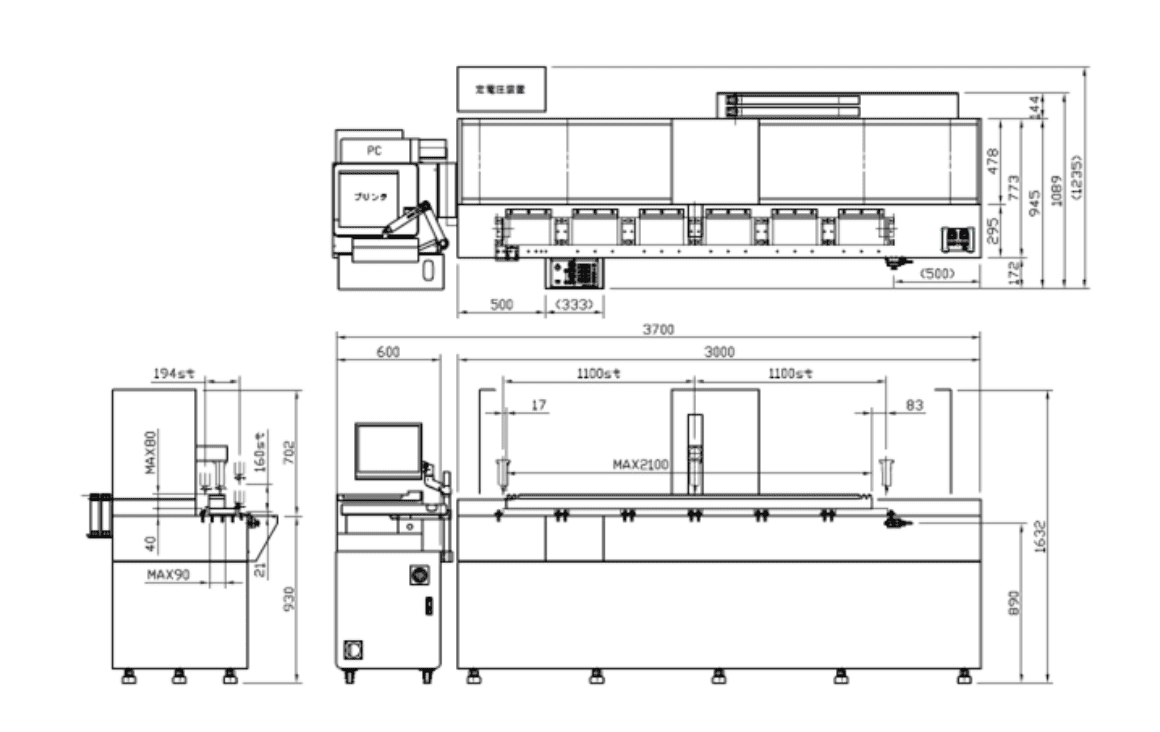

Outline and layout
